Informasjon

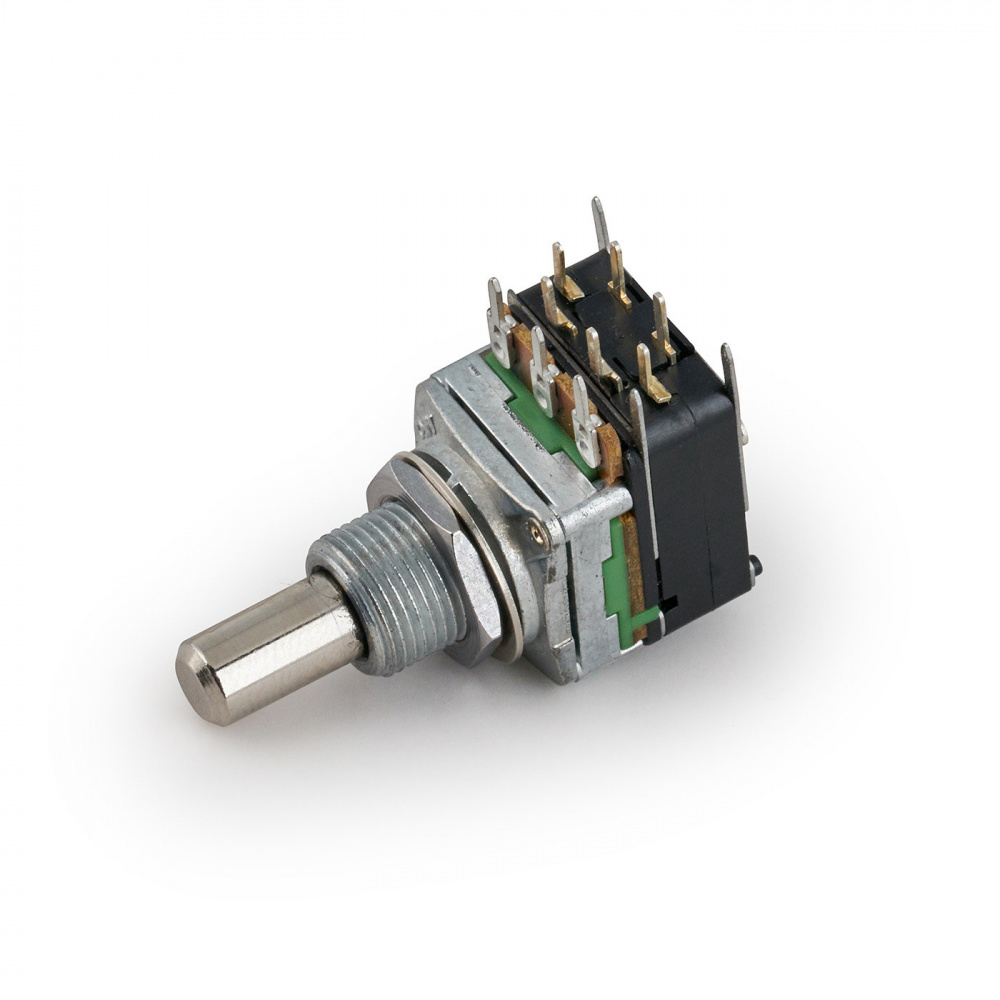

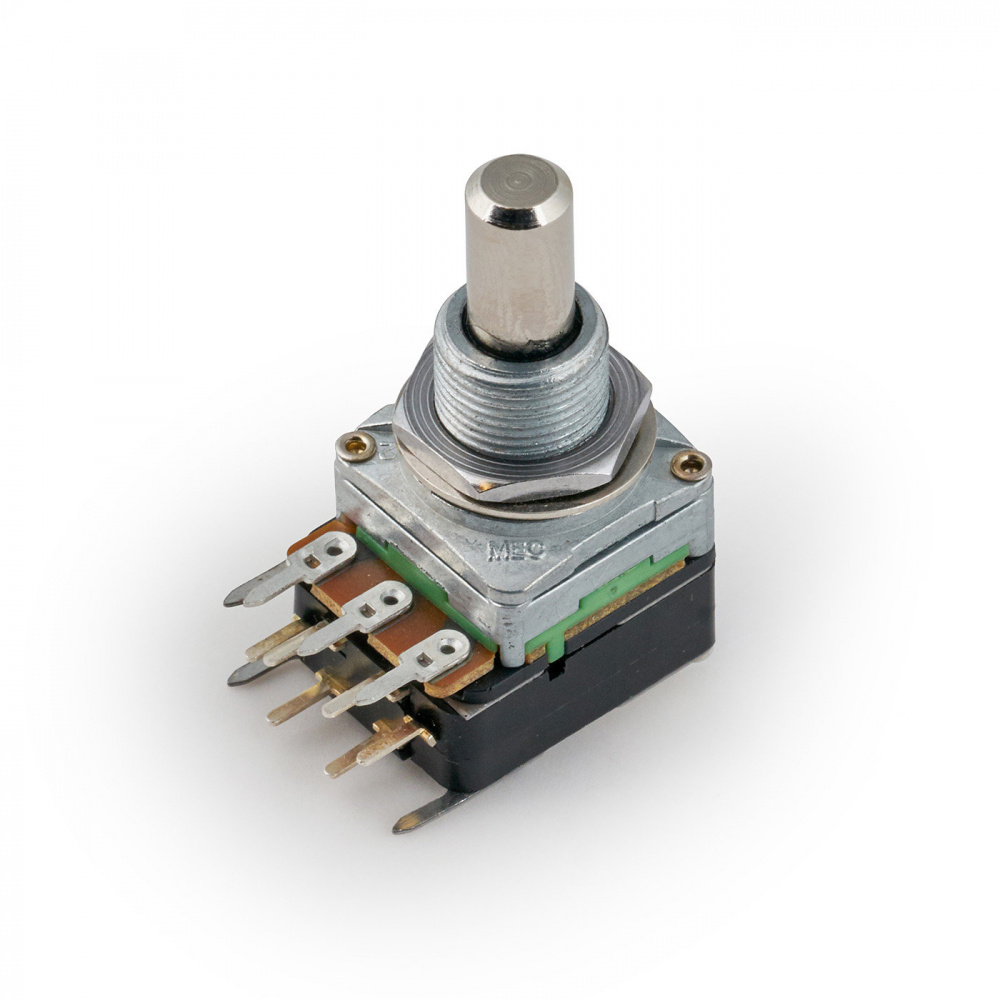

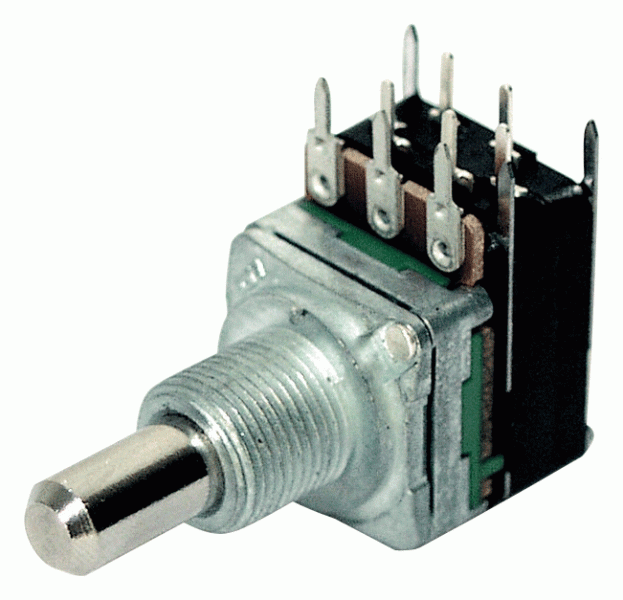

MEC 100k lin mono On/On DPDT push/pull switch. Modell M 87100.
Brukes av bl.a. Warwick på aktiv tonekontroll.
Spesifikasjoner:
- mono potentiometer with push/pull switch
- single shaft
- B100K (resistance 100 kOhm, (B) linear)
- On/On DPDT
- suitable for use as tone control for active pickups
- M10 x 0.75 mm threads
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 11 mm
- shaft diameter 6 mm
- incl. nut and washer
- dimensions incl. lugs (L x W x H) 24 x 16 x 16 mm
