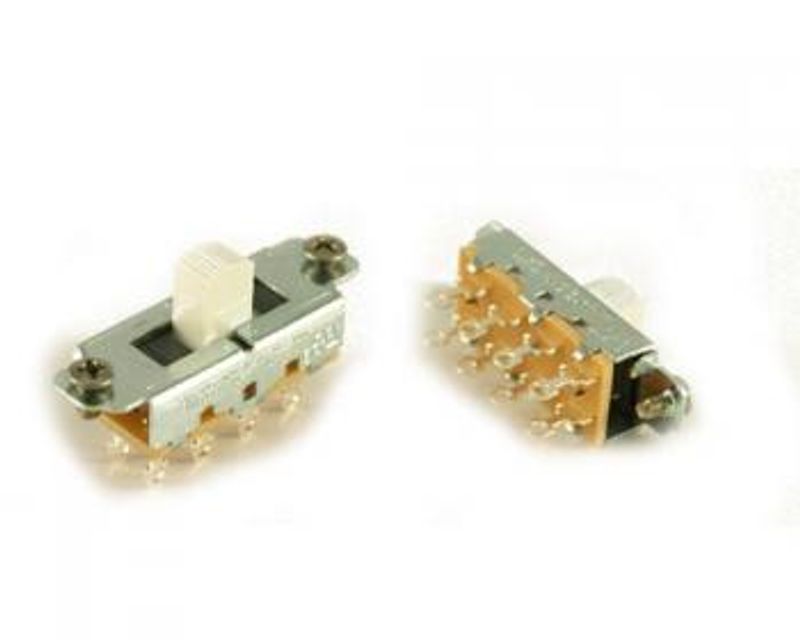

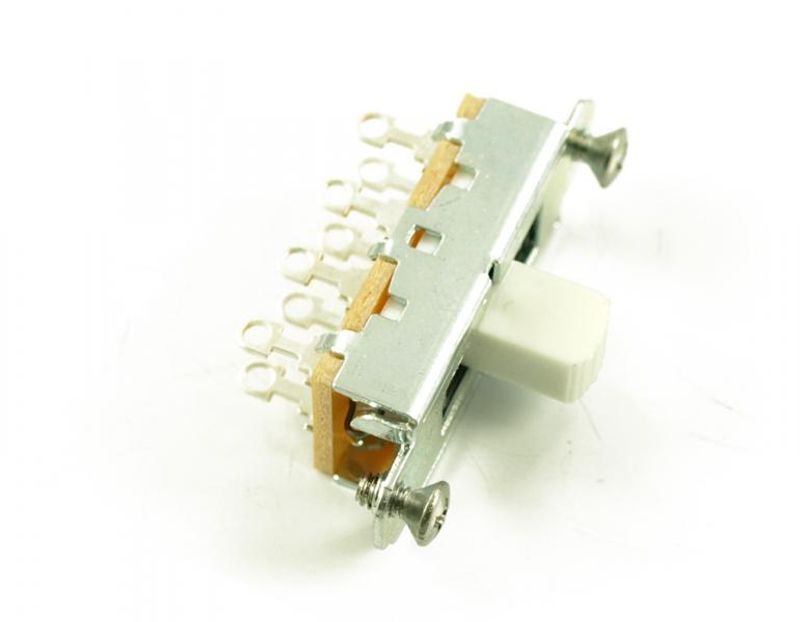

Glidebryter for Mustang og Duosonic - hvit

Switchcraft Glidebryter for Fender Mustang og Duosonic. Skruer følger med. Chassis dimensjon: 12.70mm x 44.45mm x 17.46mm Skrueavstand senter til senter: 35.72mm Dybde: 20.64mm Utsparring plekterbrett: 7.94mm x 20.64mm Electrical: Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard. Leakage Resistance: 1,000 MW or greater Dielectric Strength: 250 VDC Materials: Frame: Steel, plated Bushing and Shaft: Copper alloy, plated Springs: Copper alloy Knob: Molded thermoplastic Insulation: Rigid plastic spacers with plastic tubing through stack. Rigid plastic and/or thermoplastic lifters. Thermoplastic cam on actuator end This is a 3 position switch that can be wired as on/on/on or on/off/on.
